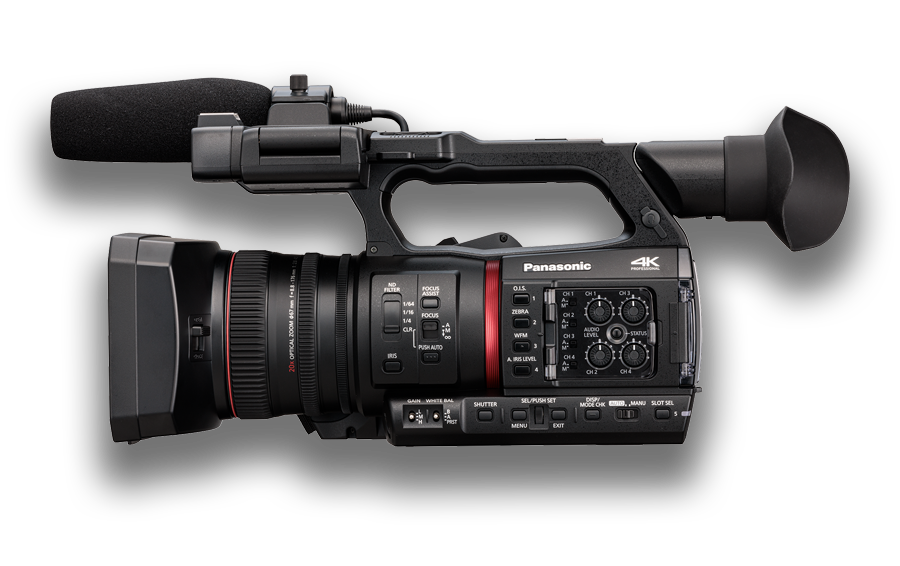

AG-CX370
4K 12G-SDI and IP video output

Camera ready for Broadcast environments and modern workflows. Ideal for remote production, ENG and hybrid events. Equipped with 1" MOS sensor, HEVC codec, NDI|HX connectivity

Product Img01(2)

Panasonic's AG-CX370 is a professional camcorder designed for high-quality video productions. Equipped with a 1-inch MOS sensor, it records in 4K and Full HD resolution, offering excellent performance in low light conditions. It supports recording in formats such as AVC-Intra, AVC-LongG and HEVC, making it ideal for television, documentaries and live events. It has IP connectivity, including live streaming and remote control. It's a versatile tool for video professionals looking for reliability and image quality.

Main features

• 1” MOS sensor with high sensitivity

Offers excellent performance in low-light situations, maintaining good depth of field

and sharp images.

• 4K baseband capture and transmission via 12G-SDI

Allows ultra-high definition video signals to be sent over a single SDI cable,

guaranteeing stable, low-latency and uncompressed transmission.

• 4K UHD and Full HD recording

Allows images to be captured in ultra-high definition or standard HD, depending on the

needs of the project.

• Compatibility with multiple codecs (AVC-Intra, AVC-LongG, HEVC)

Flexible compression and quality of the final file, adapting to different editing and

transmission platforms.

• Live streaming via IP (RTMP/RTSP)

Enables direct streaming to platforms such as YouTube, Facebook or private servers,

without additional equipment.

Product Img05 (2)
Product Img06 (2)

Main benefits

• Superior image quality even in low light

Ideal for unpredictable environments such as live events or night reporting.

• Flexibility for different formats and workflows

Easily adapts to professional workflows and editing platforms such as Avid, Premiere

or DaVinci.

• Simplified live streaming

Eliminates the need for external encoders, reducing costs and technical complexity.

• Clear and stable remote capture

Essential for sporting events, conferences or capturing images without physical

proximity.

Designed for Professionals on the Move

From the XLR inputs with phantom power to the high-visibility LCD monitor, every detail has been designed to make your work in the field easier. Record, edit and Broadcast without missing a beat.

Streaming capabilities with 4K quality and SRT protocol support

Streaming capabilities with 4K quality and SRT protocol support


4K (24p/25p/30p/50p/60p) high-definition streaming is supported. HD streaming output is possible while recording. The streaming method supports RTMP/RTMPS/RTSP/SRT protocols. SRT protocol enables high-quality streaming. Both of Client/Listener mode and encryption are supported.
H.264/H.265 codec and 8/12/25/50/75Mpb bitrate can be selected. Also supports USB tethering using a 5G smartphone. It is compatible with many services such as Facebook and YouTube and allows you to directly broadcast without an external encoder unit. Automatic uploading to a specified server is also supported.

Built-in 5-Axis Hybrid Image Stabilizer


The AG-CX370 has a built-in hybrid image stabilizer that combines optical and electronic camera shake compensation functions. It corrects camera shake in five axial directions in all modes including UHD to provide powerful camera shake compensation power in low-angle shooting, high-angle shooting and all other unstable conditions. There are three modes to choose from: NORMAL (standard), STABLE (effective for fixed-frame shooting) and PAN/TILT (effective in panning and tilting).

Built-in 5-Axis Hybrid Image Stabilizer
HEVC Codec for High-Image-Quality 10-bit 4K/60p Recording at Low Bit Rate

HEVC Codec for High-Image-Quality 10-bit 4K/60p Recording at Low Bit Rate

The AG-CX370 is capable of recording in various formats at different compression rates. It can record 4K (UHD) 60p/50p videos in high-image-quality 10-bit on an SD memory card. Using the high-efficiency HEVC codec (H.265, LongGOP, 10-bit, 4:2:0, MOV), free software, such as the VLC Media Player or QuickTime Player, provides smooth playback on a notebook PC or MacBook.
The AG-CX370 records MOV files that are highly compatible and easy to use. This file format supports long file names with up to 20 characters, allowing recorded video clips to be easily managed. The AG-CX370 also supports conventional AVCHD recording, including the AVCHD 8 Mb/s mode, used widely as the format in college and professional football coaching analysis.

High-Definition, High-Sensitivity 1.0-type 15M MOS Sensor

Wide-Angle 24.5 mm Optical 20x Zoom, Plus i.Zoom







The 1.0-type MOS (approximately 15,030,000 pixels) offers an outstanding depth of field and excellent balance between image quality and sensitivity. It supports multi-formats, such as UHD (3840 x 2160), FHD, HD and SD, and provides images without cropping in all modes. This MOS sensor also boasts high sensitivity of F12 (60 Hz) /F13 (50 Hz) (in both UHD and FHD in High Sensitivity mode).









Panasonic boasts the world’s largest market share in the aspherical lens segment. Its cutting-edge optical technology was maximized in the development of the integrated lens used in the AG-CX370. This lens has the angle of 24.5 mm on the wide end and allows recording of wide-angle images with minimal distortion, without the use of a conversion lens. The optical 20x zoom covers up to 490 mm telephoto in all modes. Furthermore, the i.Zoom enables seamless zooming of up to 32x in HD or up to 24x in UHD from the telephoto end with no degradation in resolution. The AG-CX370 also comes with digital 2x/ 5x/ 10x zoom.



High-Definition, High-Sensitivity 1.0-type 15M MOS Sensor
High-Definition, High-Sensitivity 1.0-type 15M MOS Sensor

High Shooting Quality



  • Wide-Angle 24.5 mm Optical 20x Zoom, Plus i.Zoom
  • High-Definition, High-Sensitivity 1.0-type 15M MOS Sensor
  • Intelligent AF and Face Detection/Tracking AE & AF
  • Built-in 5-Axis Hybrid Image Stabilizer
  • Manual Three Rings and Focus Assist
  • HDR-Compliant V-Log/HLG (Hybrid Log-Gamma)
  • Broadcast-Grade Picture Quality Adjustment Functions
  • Simultaneous Display on High-Brightness, High-Definition LCD and High-Resolution OLED EVF

Multi-Format, Multi-Codec Recording



  • HEVC Codec for High-Image-Quality 10-bit 4K/60p Recording at Low Bit Rate
  • P2 MXF File Formats Supported with Proxy and Shot Mark
  • Clip Metadata Functions
  • 10-bit Variable Frame Rate (VFR) without Cropping
  • 24-bit PCM Audio 4-Channel Recording
  • Freeze Frame (Still Image Capture)
  • Double Memory Card Slots Improve Recording Reliability

Connect to Networks and Systems



  • Streaming capabilities with 4K quality and SRT protocol support
  • Easy IP Connection: NDI® HX2 Supported
  • Cabled/Wireless Remote Control Capability
  • Professional System Features
  • Low Power Consuming, Large-Capacity Battery, Quick Charge

Other features

  • Intelligent Af Img (2)
    Intelligent AF and Face Detection/Tracking AE & AF
    The AG-CX370’s auto focus system is Intelligent AF, which is equipped with a micro drive focus unit to achieve high focusing speed, excellent tracking performance and superb stability. Equipped with Face Detection AE & AF, it detects human faces (up to 9 faces/automatically determines the main face) and automatically adjusts exposure and focus. In addition, it has an auto-tracking AE & AF function that follows the subject (color) touched on the LCD monitor.
  • Hlg Img (2)
    HDR-Compliant V-Log/HLG (Hybrid Log-Gamma)
    HLG (Hybrid Log-Gamma) to support HDR (High Dynamic Range,) in addition to V-Log gamma, which is equipped with 13.5 stops of wide dynamic range. The gamma mode can be selected from nine modes (HD, SD, FILMLIKE 1, FILMLIKE 2, FILMLIKE 3, FILM-REC, VIDEO-REC, HLG, V-Log).
  • Manual Three Rings Img (1)
    Manual Three Rings and Focus Assist
    Manual Three Rings for zoom, focus and iris control deliver quick response and a tactile feel that meets professional needs. The zoom lever on the top handle section features a multi-step variable zoom function, enabling smooth zooming from ultra-low speed — ideal for low-angle shots or tripod use. The AG-CX370 also includes Expand and Peaking (simultaneous display), Manual Focus Assist, LCD Touch Focus (switchable to Auto Iris or brightness display), Area Focus, and One-Push AF Focus Assist.
  • Easy Ip Img (2)
    Easy IP Connection: NDI® HX2 Supported
    With NDI®|HX2 mode, the AG-CX370 allows video transmission and camera control via an IP connection, without the need for external converters. This feature facilitates live productions and online broadcasts, making the whole process simpler and more efficient.
  • Frame Rate Img
    10-bit Variable Frame Rate (VFR) without Cropping
    In UHD, variable frame rate (VFR) recording at 1 fps to 60 fps is possible. In FHD, super-slow can be realized at a maximum of 120 fps. Both provide high-quality 10-bit, full-frame pictures with no image area cropping even at high frame rates.
  • Picture Quality Adjustment Img (2)

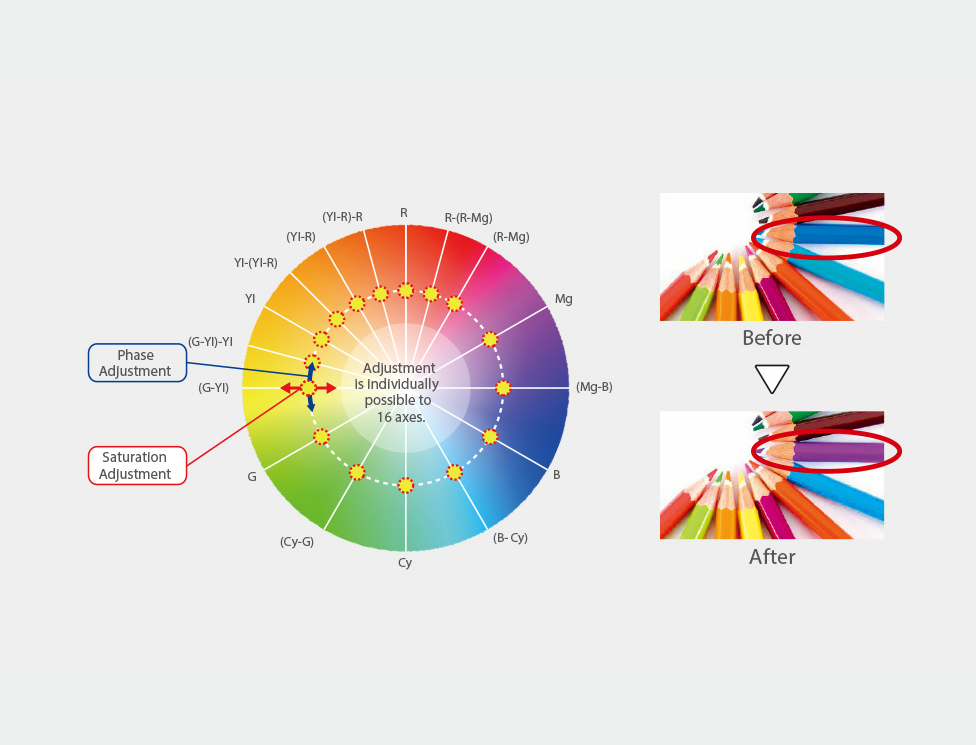

    Broadcast-Grade Picture Quality Adjustment Functions
    16-Axis Independent Color Correction for precise adjustment of each video phase, allowing accurate color matching and creative rendering. Master Detail controls contour enhancement, while Skin Detail softens skin tones for a natural look.
    It includes six customizable Scene Files and key picture settings like matrix tables, V detail, detail coring, chroma level and phase, color temperature, master pedestal, and knee, ensuring full image control.
