Sapphire-B2TX

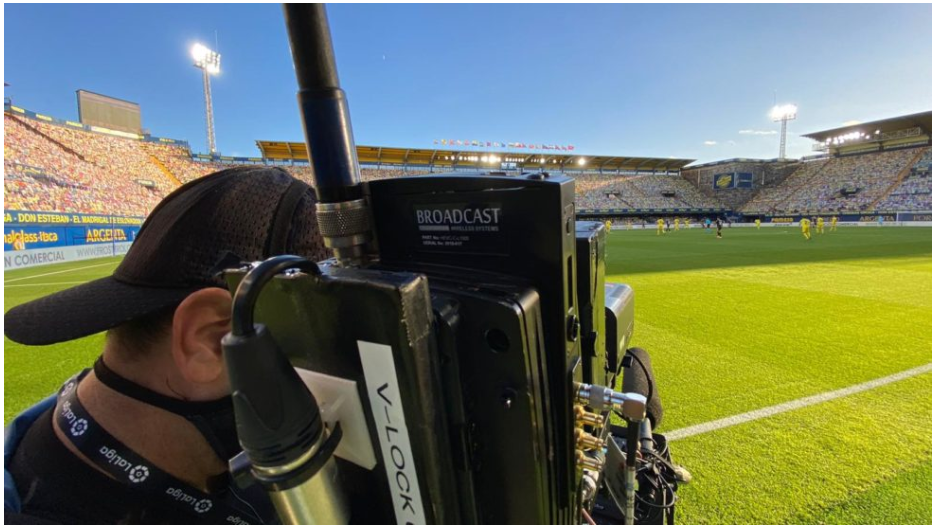

Camera Back Transmitter, single, compact package, suitable for camera-back mounting.

B2tx White (1)
Dbs Sapphire B2tx V3 2 (1)

Overview

The Sapphire-B2TX camera-back transmitter, integrates a True 4K HEVC encoder with two COFDIVI modulators creating a single, compact package, suitable for camera-back mounting. The Sapphire-B2TX is equipped with a single video input capable of 36 HD-SDI, 6G and 126, thus allowing video formats to UHD.
The dual 100mW COFDM outputs in separate 2GHz and 7GHz bands, make the Sapphire-B2TX ideal for operators wanting frequency agility.
Back to back V Lock or Anton Bauer battery plates facilitate pass-thraugh power whilst an additional externa! power connector is pravided at the base. Analogue stereo audio inputs are supported as well as camera contrai and Tally interfaces.
Sapphire-B2TX is equipped with a high-quality, low-latency H.265 (H.264 is also available) encoder capable of UHD and HD formats in 10bit 4:2:2 with automatic HDR support.

Up to 8 stereo pairs

Up to 8 stereo pairs of audio in either MPEG-1 layer 1, or PCM format (4 stereo pairs in AAC-LC) can be extracted and encoded by The Sapphire-B2TX whilst analogue audio inputs with power are included for direct micraphone connection.
Camera contrai and transmitter settings are accessible thraugh a single colour panei on the side or using the web brawser interface.
Bi-directional camera contral is a hardware option in the Sapphire-B2TX.

Key Features



Low latency UHD/HD Resolution encoding (Typically 35mS input to output)



Single input Interface supporting 3G HD-SDI, 6G and 12G



two independent RF outputs at 2GHz and 7GHz (other frequencies available)



Optional Bi-directional Camera Control modules



Supports Anton Bauer and V Lock battery plates



Support for UHD/HD HDR and also Timecode (film industry) signal insertion



IP Streaming and Web browser control



SDI ln can be switched to ASI in to support transport stream relay
